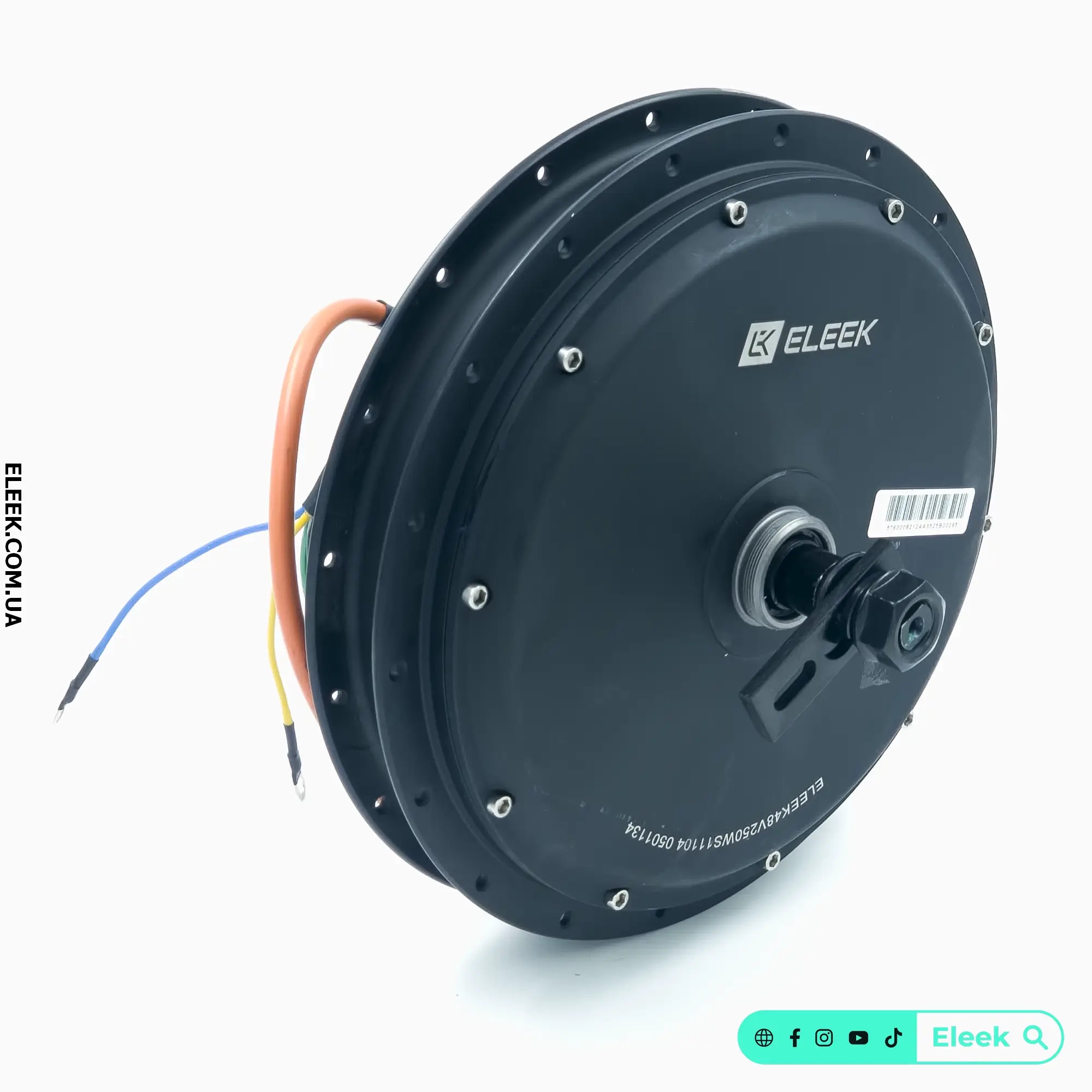

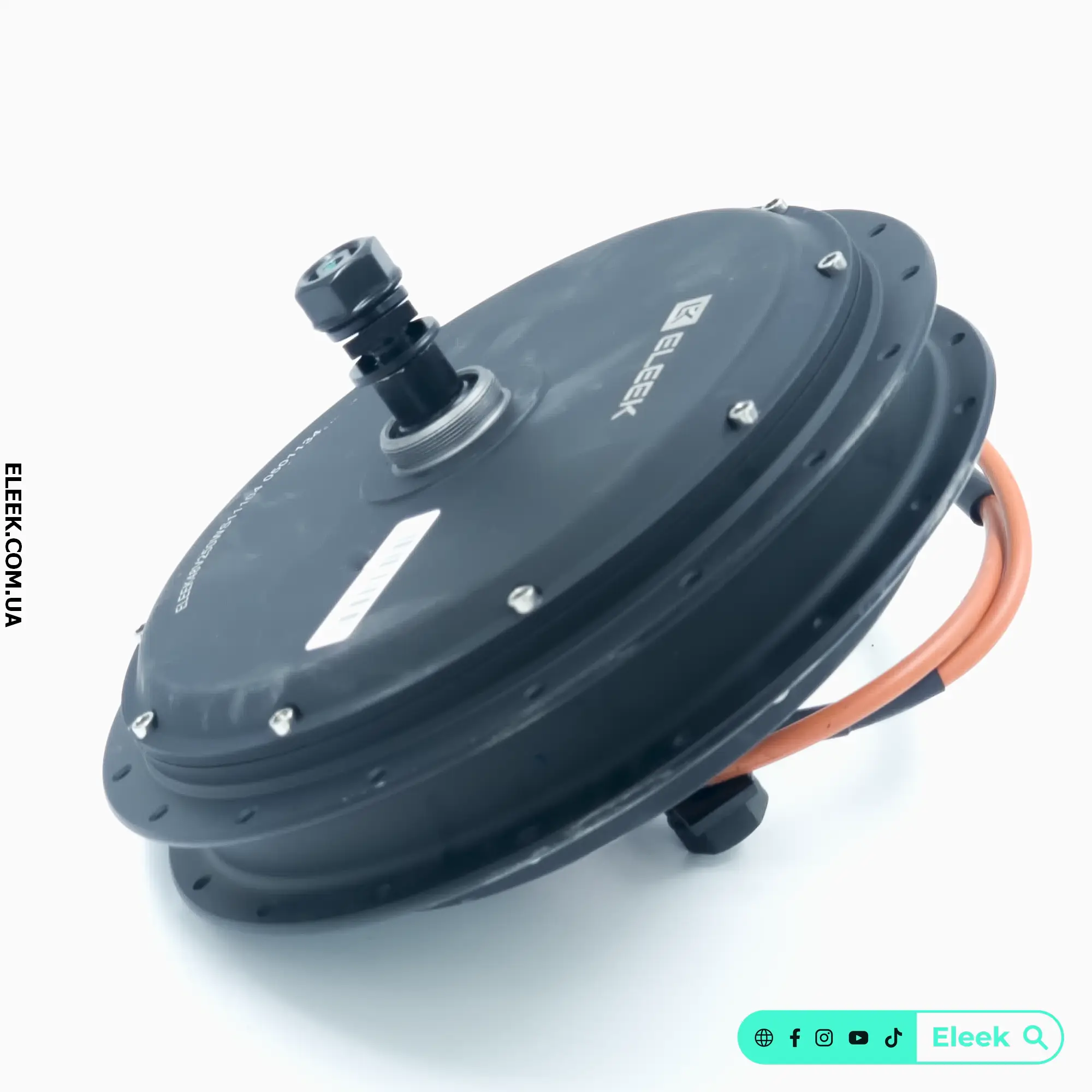

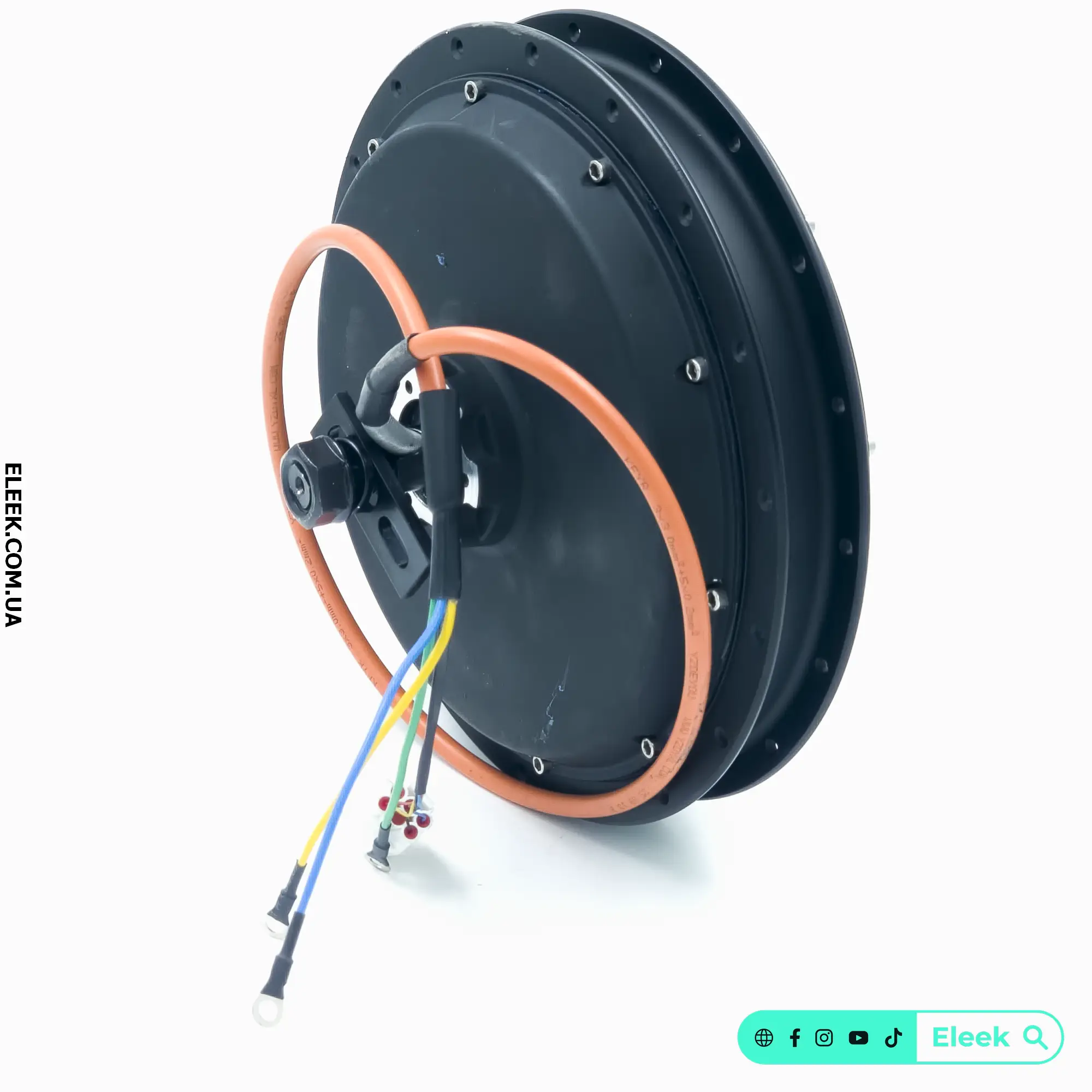

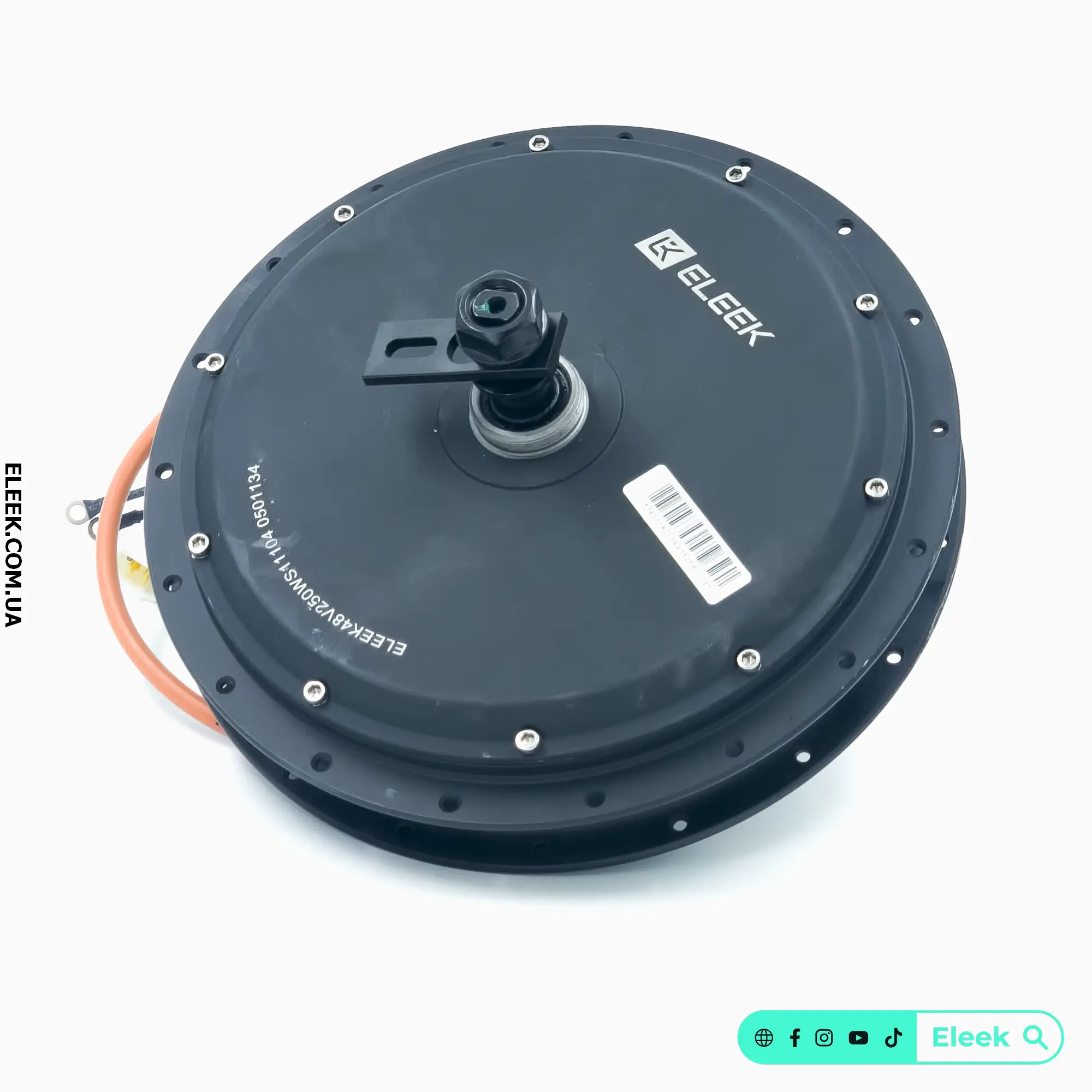

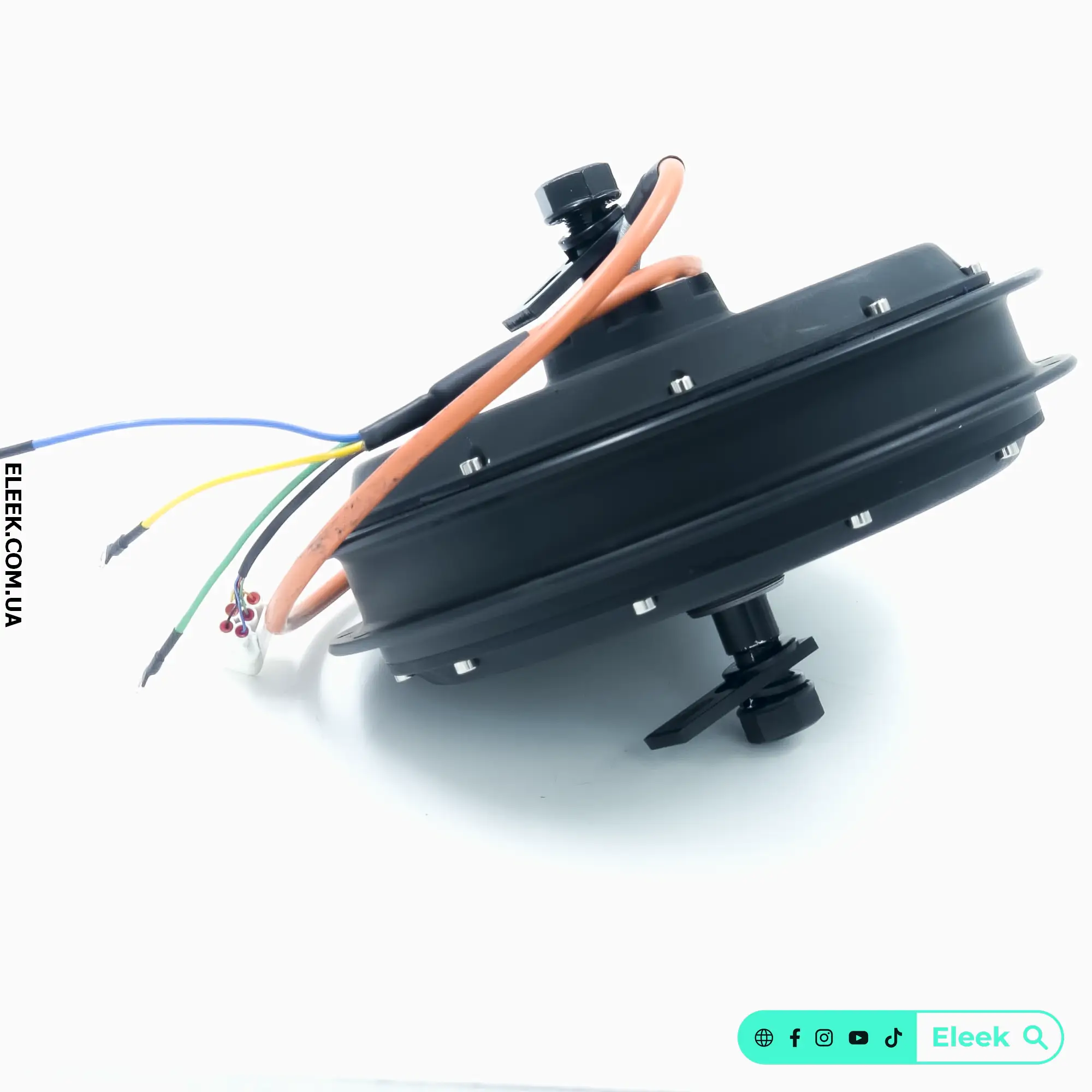

ELEEK MK1200 48V 1200W (QS212) Electric Bicycle Hub Motor
Please note!
Color shades in the photos may slightly differ from the actual ones depending on your monitor settings. The manufacturer reserves the right to make changes to the configuration, technical specifications, and design elements without prior notice in order to improve the product.
13 500,00 UAH
Buy
Brand
ELEEK
Наявність:
Is in stock
The ELEEK MK1200 direct-drive electric motor is a reliable gearless BLDC hub motor designed for high-speed electric bicycles and lightweight e-bikes. The motor delivers a rated power of 1200W with a peak output of up to 2400W and a torque of 109.2 N·m. The standard 135 mm dropout width allows for seamless integration into standard bicycle frames with disc brakes. An IP65 waterproof rating ensures reliable performance in all weather conditions.
Specifications
| Parameter | Value |
| Brand | ELEEK |
| Model | MK1200 |
| Motor Type | Direct-Drive Brushless (BLDC In-Wheel) |
| Rated Power | 1200 W |
| Peak Power | 2400 W |
| Rated Voltage | 48 V |
| Max Torque | ~109.2 N·m |
| Max Speed | 450 RPM (with sine wave controller) |
| Max Efficiency | ~86% |
| Dropout Width | 135 mm |
| Axle Design | Double axle without rim (for spoking) |
| Matched Rim | 26" (and custom laceable sizes) |
| Brake Mount | Bicycle Disc Brake (PCD 6x44 mm, CB 58 mm) |
| Hall Sensors | Single Hall set with waterproof connector |
| Phase Wire Cross-Section | 3 mm² |
| Waterproof Rating | IP65 |
| Operating Temperature | 70–110 °C (peak up to 120 °C) |
| Color | Black |
| Weight (N.W. / G.W.) | ~8.98 kg / 9.2 kg |
| Package Dimensions | 34 x 34 x 33 cm |
