ELEEK VM-01 CNC Machined Aluminum Brake Rotor Adapter

This is a reliable engineering solution for high-power electric bikes. It allows you to convert from a standard bicycle brake rotor mount (6-bolt) to a heavy-duty motorcycle standard (4-bolt).

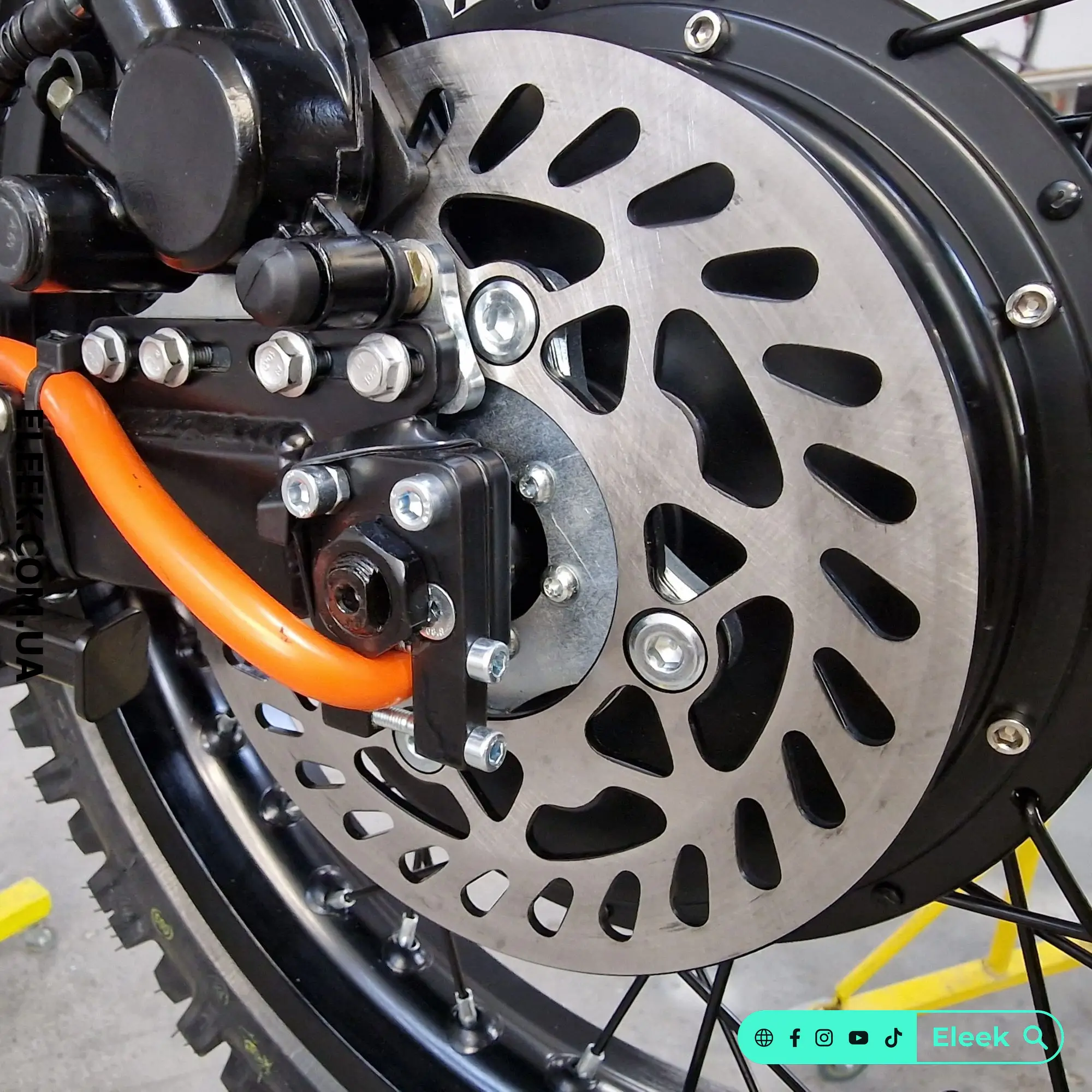

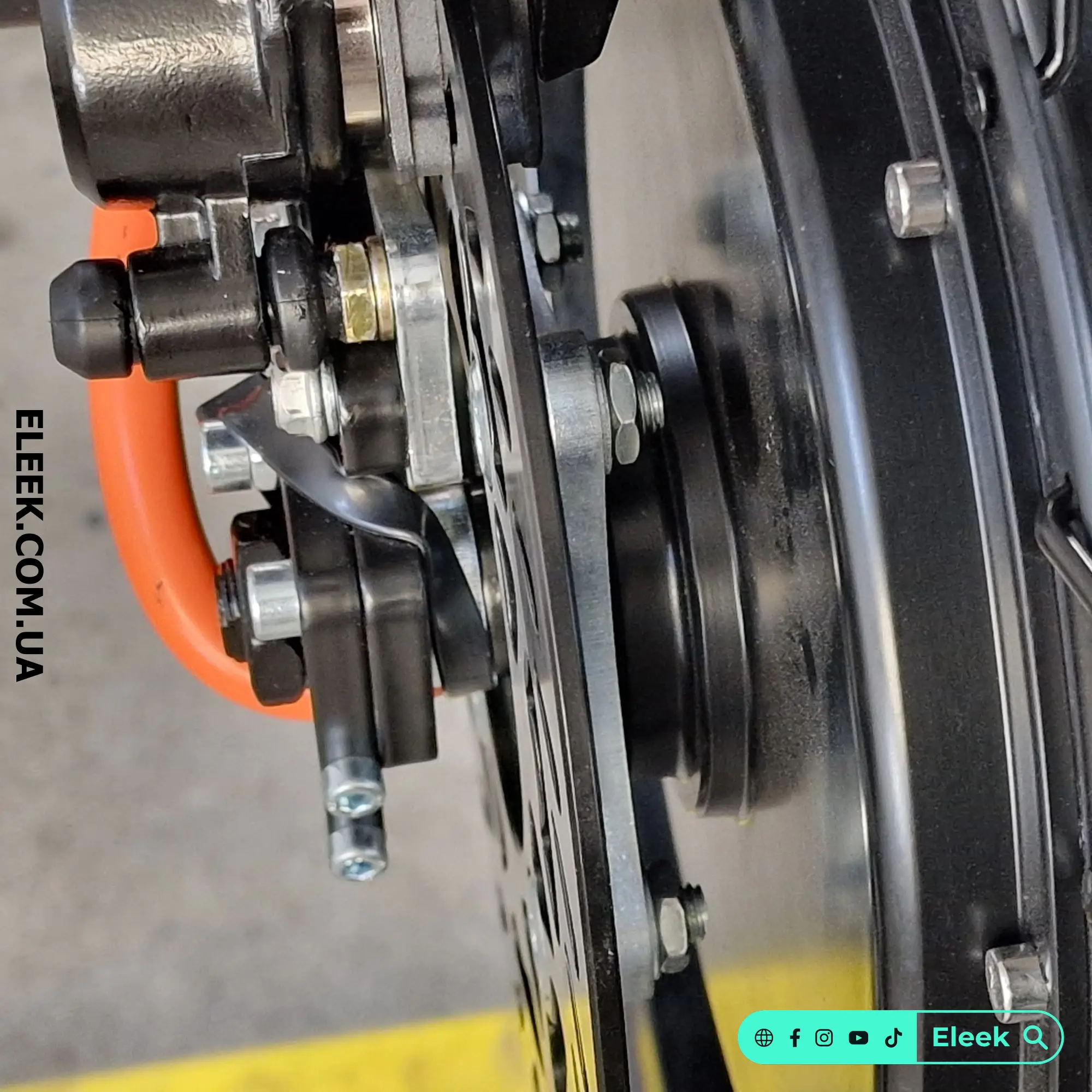

The adapter is perfectly compatible with popular electric motors like QS205 (Hub Motor) and other hubs with an ISO bicycle mount. It is manufactured using high-precision CNC milling from solid aluminum, ensuring maximum rigidity, lightweight performance, and durability under extreme braking loads. A reinforced motorcycle-standard braking system means your safety at high speeds!

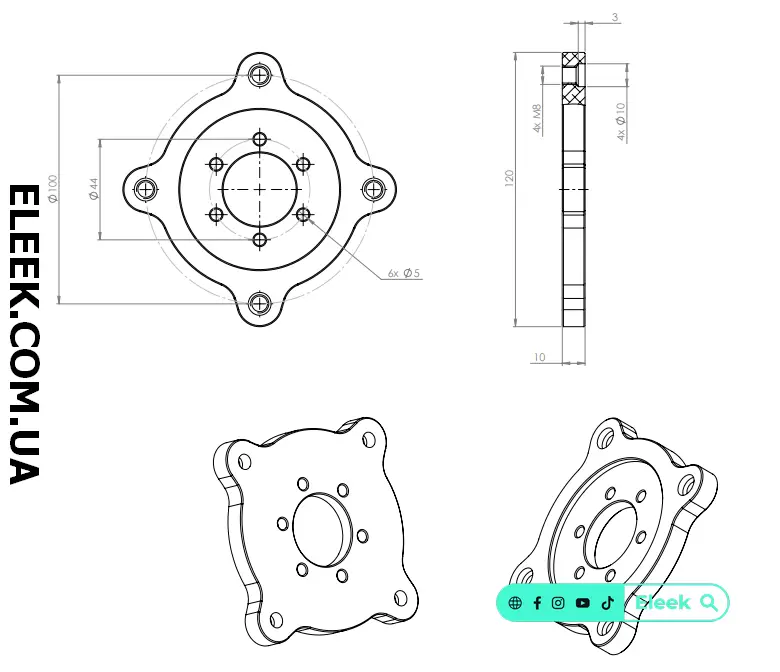

Technical Specifications and Dimensions

• Brand: ELEEK

• Model: VM-01

• Material: Aluminum

• Adapter thickness: 10 mm

• Overall dimension: 120 mm

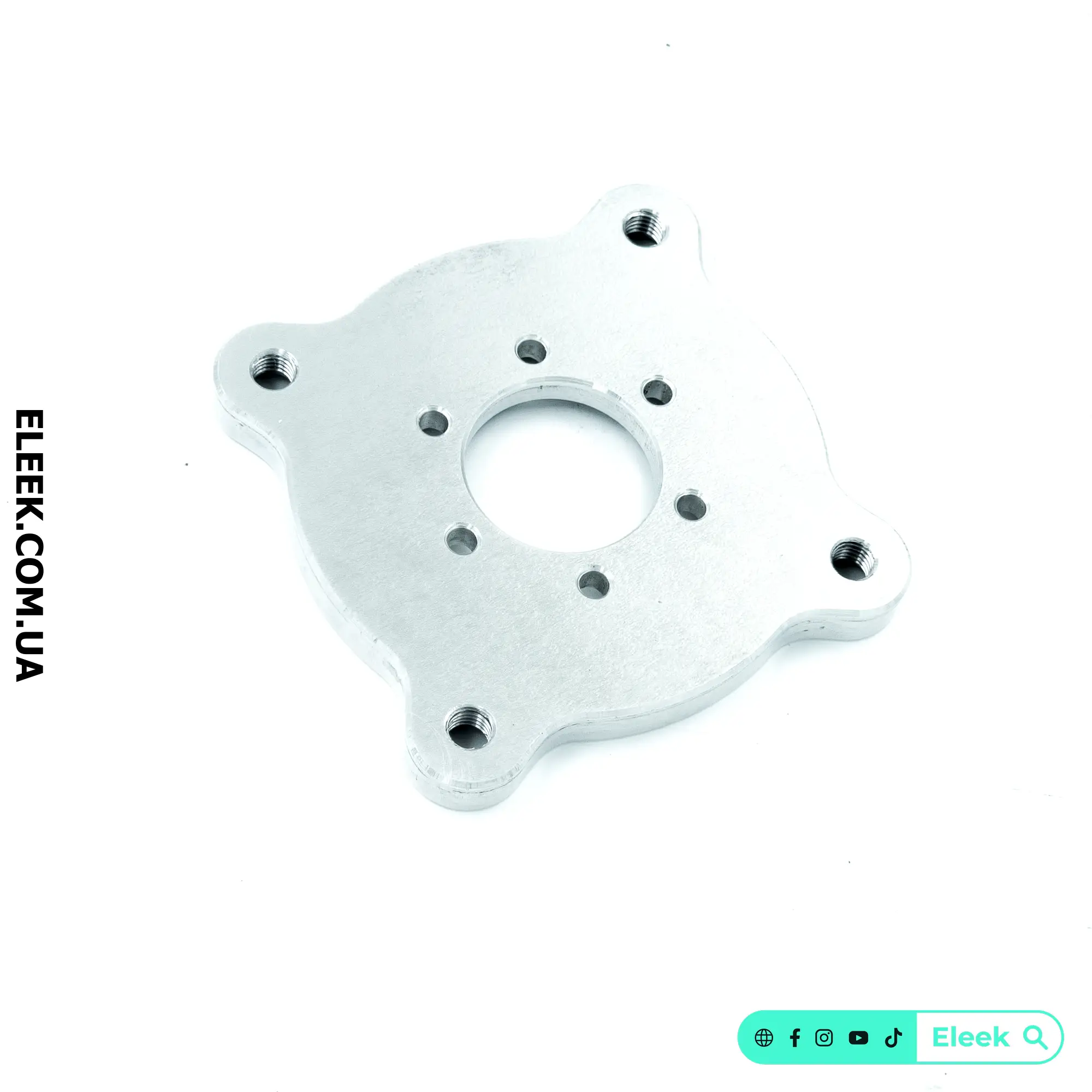

• Inner mount (to hub motor): 6 holes × Ø5 mm for M5 screws. Pitch circle diameter (PCD) - 44 mm (international ISO 6-bolt bike standard).

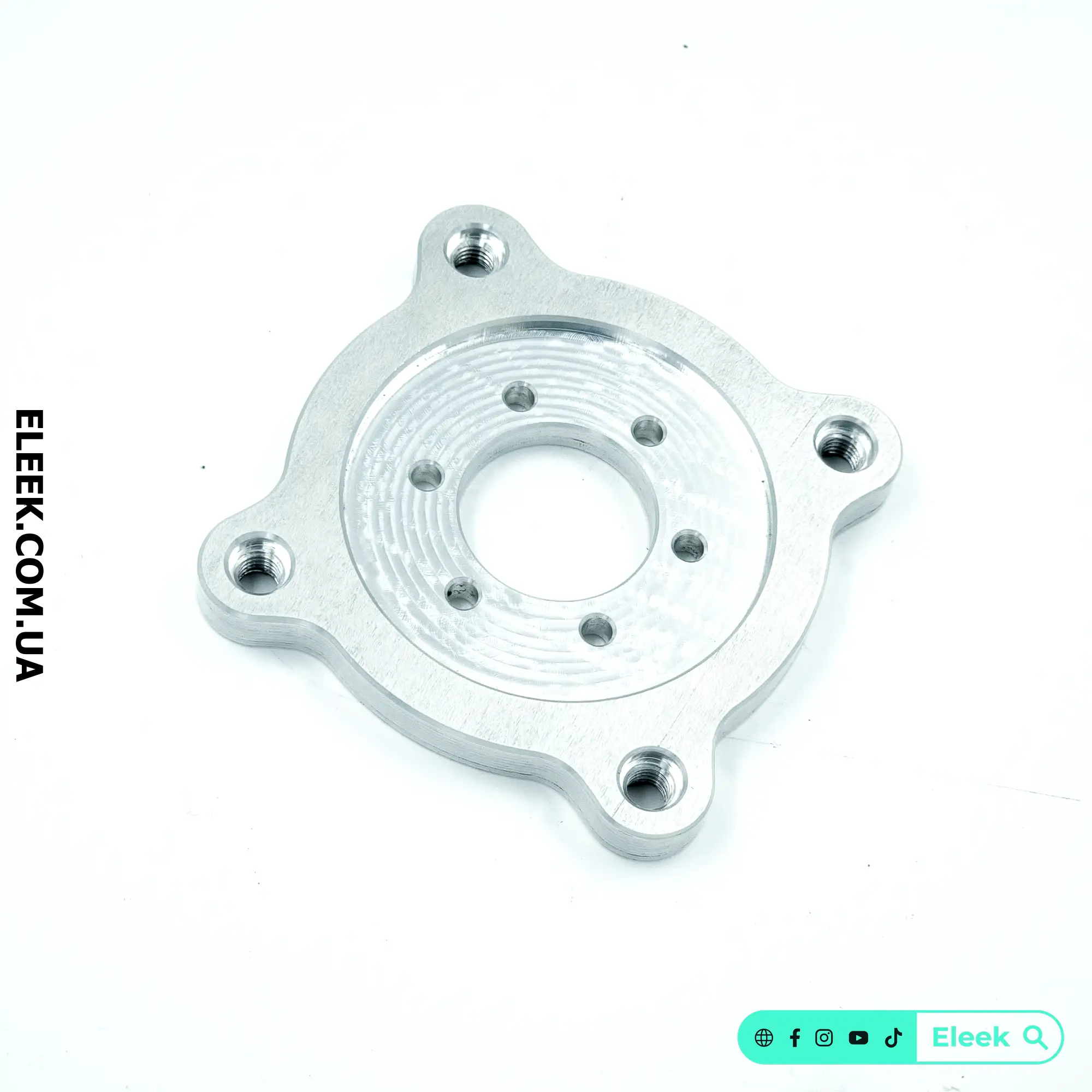

• Outer mount (to brake rotor): 4 holes × M8 with a Ø10 mm counterbore (3 mm depth). Pitch circle diameter (PCD) - 100 mm (popular motorcycle standard).

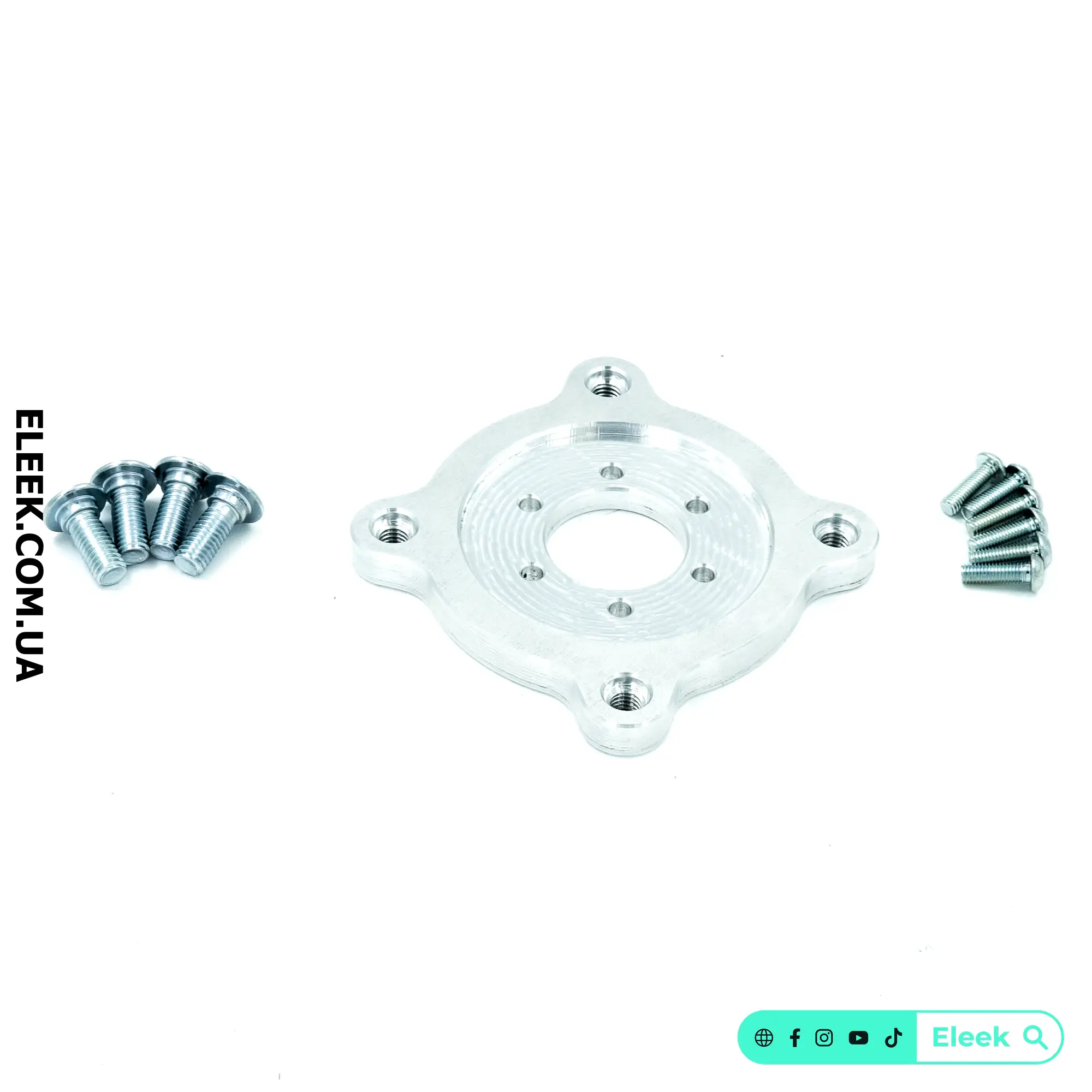

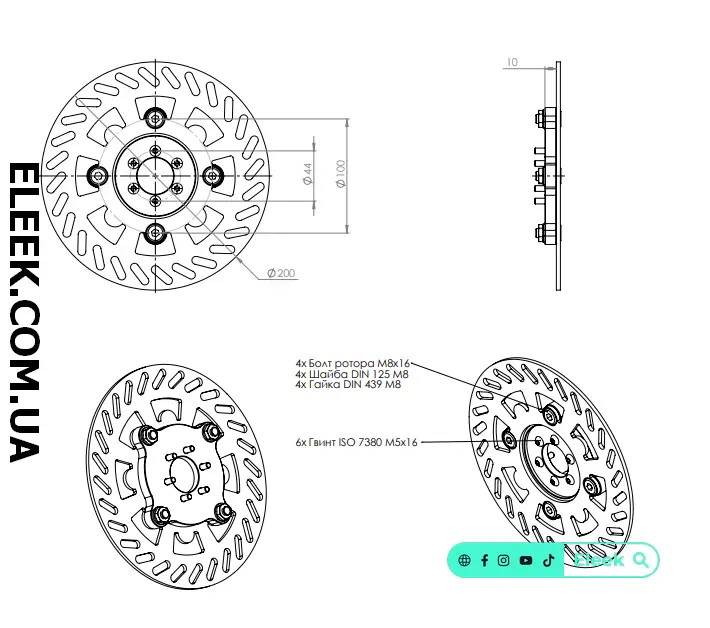

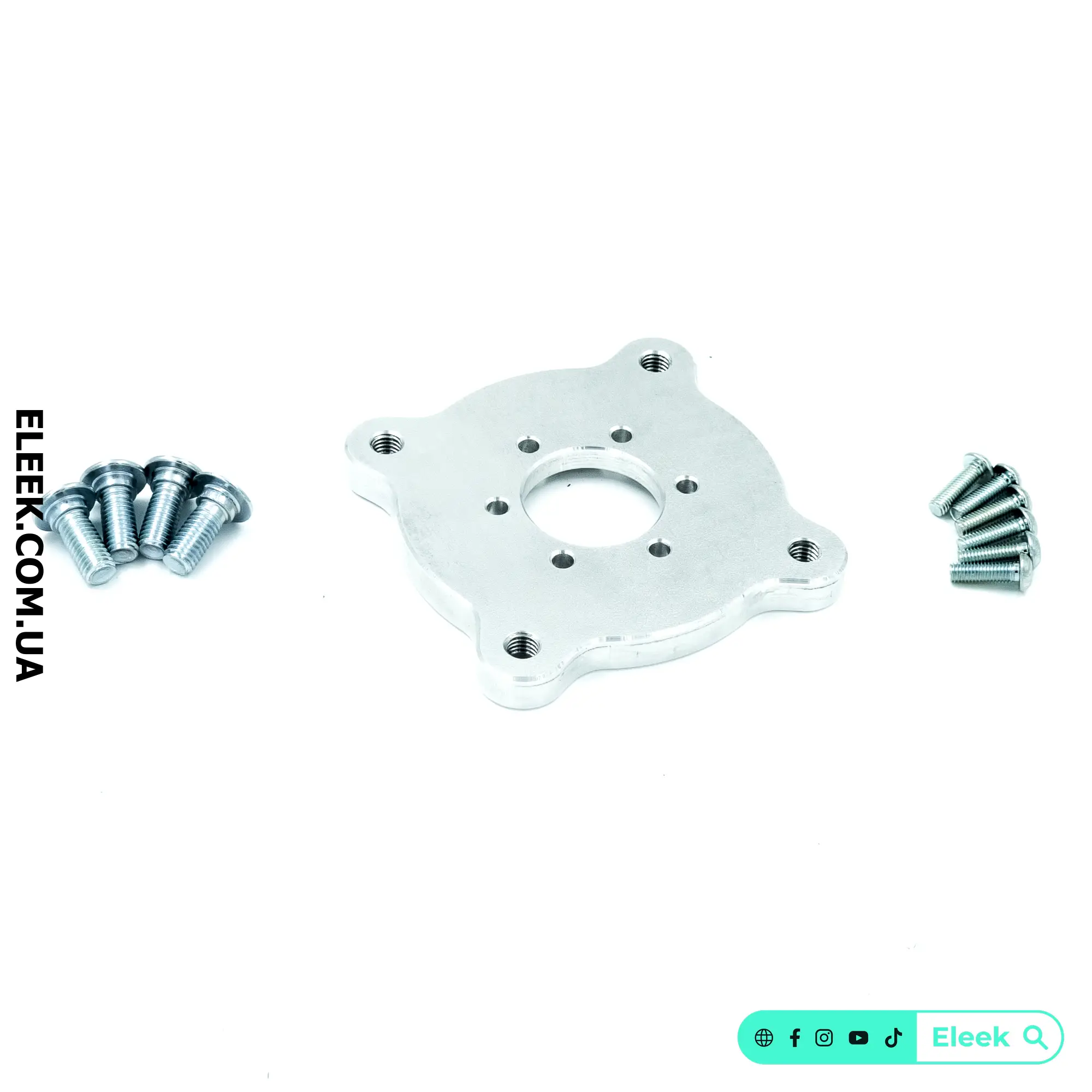

Package Includes:

1. Brake rotor adapter — 1 pc.

2. ISO 7380 M5x16 screws (for securing the adapter to the motor) — 6 pcs.

3. M8x16 rotor bolts (for mounting the motorcycle rotor) — 4 pcs.

4. DIN 125 M8 washers — 4 pcs.

5. DIN 439 M8 nuts — 4 pcs.
